Pyrenees Layout

Pyrenees Layout

Inspired Living For Great Adventures

Contact us today to tailor your layout to your unique needs…

Introducing the Pyrenees Layout, the inspiration behind our very own first van. At Vanpuravida Ltd, we love this inspiring layout and have been living full time in our own Pyrenees-inspired conversion. Perfect for a couple, this layout makes every adventure unforgettable.

Introducing the Pyrenees Layout

As mentioned, the Pyrenees Layout was the inspiration behind our own vanlife journey. As full-time travellers, we designed this layout to provide the perfect balance of function, comfort and style. Perfect for couples, with an optional third bed for a child, this layout features a flexible sofa bed that opens up the living space, a real kitchen and a walk-through design that allows for simple and effective movement throughout the van.

Why We Love the Pyrenees Layout

  • Beautiful Views, Every Time
    With a sofa facing the sliding door, you can lounge in comfort while spending hours admiring the views. From cliffs and beaches to beautiful countryside, it’s all yours to enjoy.
  • Spacious Living
    The Pyrenees Layout boasts a walk-through design which gives a sense of open-plan living. It’s bright, airy and open, making your van conversion feel like home.
  • Cook Like a Chef
    The “real” kitchen allows you to prepare meals just like at home. From Sunday morning fry-ups and pizza night to 3-course meals, this layout makes it all possible.

What does the Pyrenees Layout include?

2 berths version- From £51,990 plus VAT.

(Vehicle base not included. Optional 3 berths version available with a child bed 140x60cm.)

ELECTRIC

  • 1 rigid solar panel, up to 370W (depending on the space available on the roof)
  • 165Ah Roamers Lithium battery smart app monitor control.
  • Battery monitor.
  • Victron MPPT 100/20 smart charger
  • Power inverter Victron Phoenix 12/800
  • Electrical and control panels on the right side in cupboards.
  • USB socket x2
  • 3-pin socket x2
  • 4x recessed ceiling light.
  • 2x wall-mounted reading light
  • Recessed lights in step
  • 2x LED strips
  • Electric certificate

GAS

  • 30L underslung LPG tank (refillable bottle system), with external filling point
  • Internal LPG level control panel
  • 12V gas alarm
  • Gas Landlord’s certificate

APPLIANCE

  • Thetford Topline 922, double gas hob with 12v ignition.
  • Roof extractor Maxx Air fan Deluxe with remote control.
  • 12v fridge with ice box type Dometic CRE50 (or possibility retro style).
  • Air diesel heater 4Kw Autoterm.

WATER SYSTEM

  • Water heater: Whale expanse LPG gas and electric 240V (underslung where possible)
  • Whale water pump 30psi (or equivalent) with filter and non-return valve.
  • Whale water accumulator (or equivalent)
  • Whale piping
  • 90L water tank with external filling point (located under the sofa), 75L waste water tank underslung.
  • KUS fresh and waste water level indicator with wall-mounted control panel

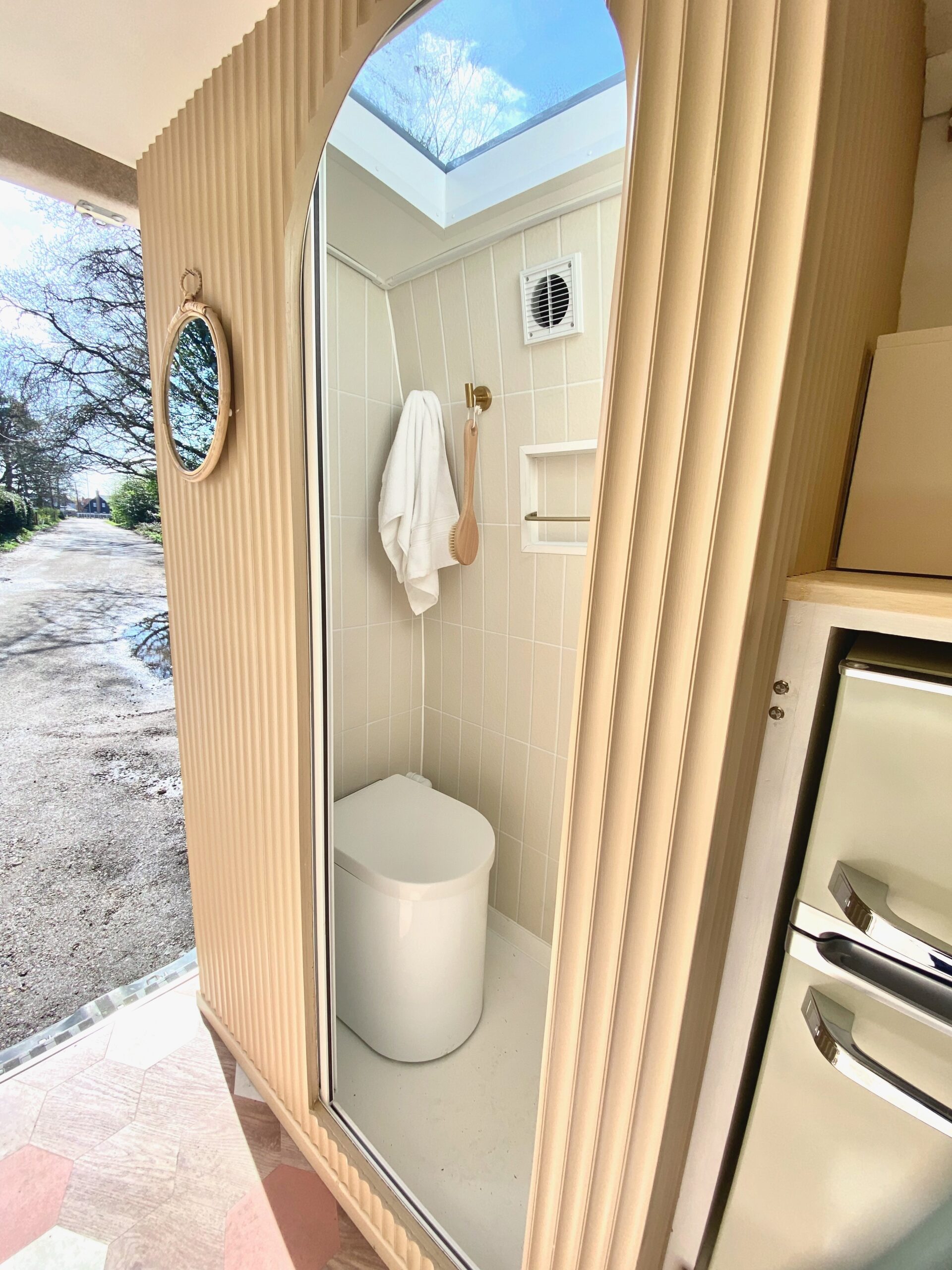

SHOWER ROOM

  • Shower room with cassette toilet Thetford C223CS or Simploo compost toilet.
  • Air vent from the heater for comfort during the shower and to dry your clothes easily.
  • Wall and ceiling with a large choice of colour 3D panels.
  • Shelf niche in bathroom for toiletries.
  • Shower set black, chrome or brushed gold.
  • Door ROLdoûr retractable roller doors.
  • Roof 12V Light/extractor SwiftAir or equivalent.

OTHER

  • Sofa bed with Mattress Premium Reflex 40H. Zip on the back of every part for easy wash. (different positions, L-shape, small or large sofa, double bed 120x190cm) with 2 cushions
  • Choice of wall or curtain separation between the cabin and the cargo area.
  • Storage above the driving cabin.
  • 2 lateral privacy glass windows (one opening, one fixed) equipped with blackout roller blind.
  • Bamboo table with removable leg.
  • 4x Plywood kitchen units with white shaker doors (different kitchen doors available). 2 units with drawers, 2 units with doors.
  • Bamboo kitchen worktop.
  • Option of black, white or steel sink with black, gold or chrome kitchen tap with hot water.
  • One closet cabinet above the fridge (approx 70cm high), one storage under the fridge (approx 30cm high)
  • 1 large closet at the entrance with pine louvre doors.
  • Up to 5 top cabinets.
  • Reco surface 3D tiles effect for kitchen backsplash or wallpaper special backsplash by Behangfabriek.
  • Insulation with PIR board 50mm, 100mm, Plastic recycled insulation fleece for cavities and expanding foam. Insulation layer covered and sealed with bubble foil as a vapour barrier.
  • White painted plywood for wall and ceiling (Low VOCs)
  • Large choice of LVT wood effect flooring.
  • The metal part of the van that remains visible is covered with lining carpet when panelling is not possible.
  • Smoke and CO alarm.
  • Extinguisher and fire blanket.
  • Gas Landlord Certificate
  • Electrical installation certificate
  • Weight bridge certificate.

Every detail can be customised to match your unique taste and lifestyle. So why wait? Let’s build your dream van together and contact us today for more information!

FAQs

Is the vehicle included in the price?

No, the starting price of £51,990+ VAT covers the conversion only. You’ll need to supply or purchase the vehicle separately.

Can I customise the colour scheme?

Absolutely. We offer an extensive range of colour options from cabinet laminates to cushion fabrics.

How long does a conversion take?

The length of time a conversion takes will vary depending on your requirements. Contact us today for a more accurate timeframe.

What are the electrical capabilities?

You’ll enjoy a powerful off-grid setup including a lithium battery, solar panel, inverter and multiple sockets.

Can I live in the van full-time?

Definitely. The Pyrenees Layout is ideal for long-term travel and full-time Vanlife.
